Portable Vacuum Mount Vibrators
DESCRIPTION:
Vacuum attaching vibrators make sense when it is prohibited, impractical or too time consuming to weld on a vibrator bracket. Applications include unloading railroad hopper cars, trucks, tote bins, cardboard boxes, drums and FIBCs.
Do you need to compact material in a drum or cardboard container? You may not need a vibratory table at 4 to 6 times the cost. Attach the vibrator right to the side of the drum.
Three size vacuum bases are available. Each base is drilled to accept various vibrator models and sizes. See VFP, VFPLF, VLB and VGT series for specifications on vibrators used with vacuum attaching bases.
Characteristics: Portable, light weight, air powered (common air supply feeds both vibrator and vacuum venturi system), mounts to flat and curved surfaces
|
Models:

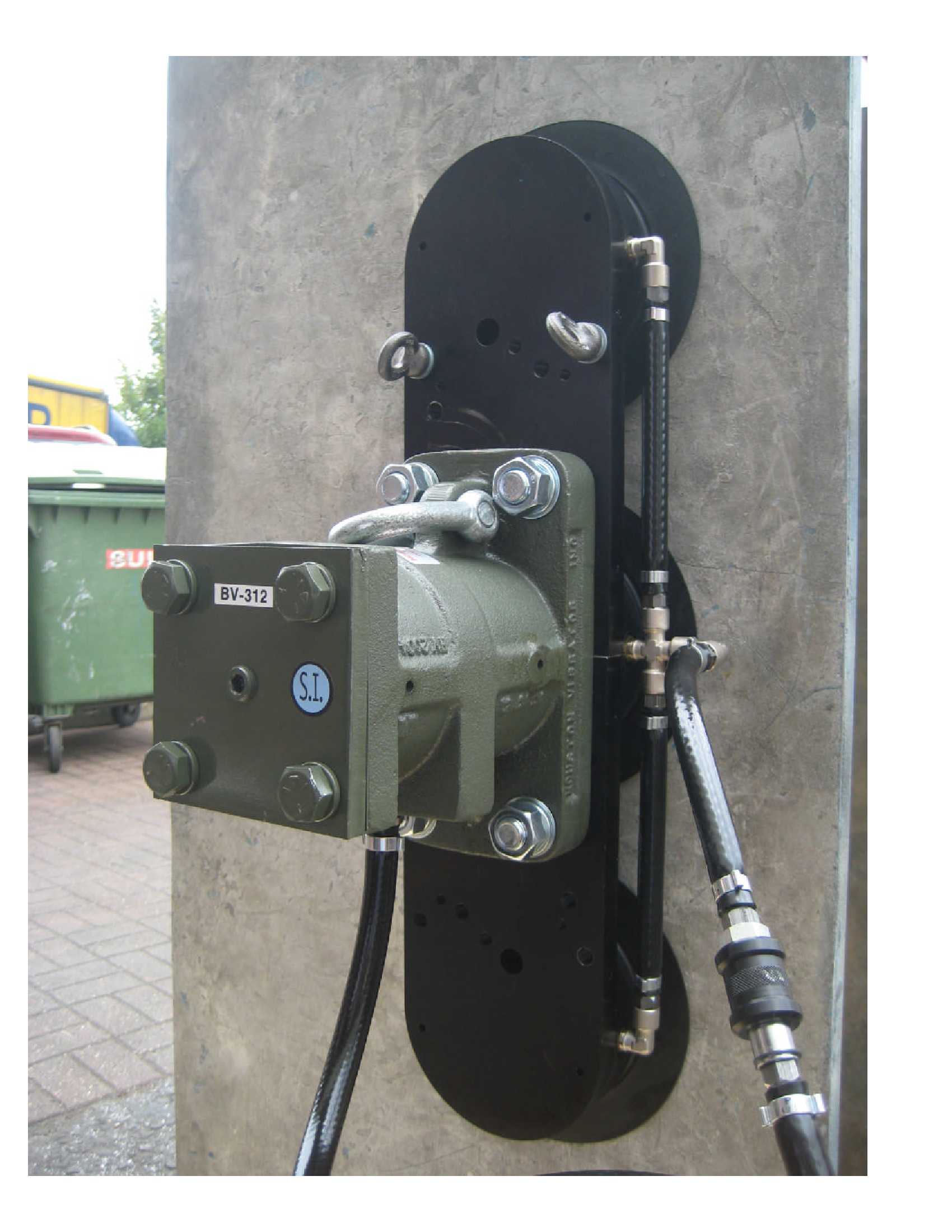

VTC Vacuum Attaching Mount (vibrator as shown below sold separately)
|
PVM-220 Vacuum Mount (shown with model VLB-750 linear, non-impacting, precision piston vibrator)
Characteristic: Largest base with two 8" diameter suction pads. Mounts vibrators with up to 970 lbs of force output.
|
PMV-212 Vacuum Attaching Mount (shown with model VFP-35M linear, non-impacting, precision piston vibrator)
Characteristics: Mid-size base with one 4.75" x 12" suction pad. Mounts vibrators with maximum force of 240 lbs.
|
PVM-210 Vacuum Attaching Mount (shown with model VFP-25M linear, non-impacting, precision piston vibrator)
Characteristics: Smallest base with one 3" x 8" suction pad. Mounts vibrator with maximum force of 135 lbs.
|
|
|
|
