PISTON VIBRATORS

Characteristics: Moderate life, rugged construction, linear force output

Description: A steel piston reciprocates in a cylinder housing at high frequencies and impacts on harden end plates. This simulates the blows of a hammer and causes any object attached to the vibrator to vibrate at its natural frequency. Internal porting allows the piston to reciprocate without the need for external valves other than to control air supply. Force output is linear. Frequency and force can be adjusted by varying the air pressure. Although a piston vibrator may be run continuously, piston vibrators are normally used in intermittent operations because of energy usage and vibrator life considerations.

Recommendation: Intermittent operation (4 to 8 hours/day when considering energy usage and life. For continuous duty, use the VFP, VFPL, VLB, or VTL or FAL Piston Vibrator series which are more energy efficient.

Variation of the piston vibrator design:

  • piston impacts on one end only
  • piston is fitted with hard rubber tips to reduce noise of metal to metal impact
  • piston reciprocates without impacting to reduce noise
  • piston and housing are ported so there is only one blow each time a 3-way valve is energized

Models:

  • Impacting Piston Vibrators - simulates a high frequency hammer; transfers the maximum force to its mount; air usage is conservative; noise levels are high.
BV-LG Version A
BV-Long Series

  • Quiet Impacting Piston Vibrators - rubber tipped piston delivers impact forces close to impacting BV-Series vibrator and reduces noise by up to 20% depending on model.
BV-QI-image
BV-QI Series
  • Non-Impacting Piston Vibrators - quietest of the piston models, but considerable reduction in force output; non-impacting model requires at least one size larger than an impacting model to compensate for loss of energy transfer.
BV-AC-image
BV-AC Series

  • Timed Impact Piston Vibrators - produces one impact at a time; frequency of impacts is controlled by built-in air timing mechanism; extremely low air consumption; lower noise exposure than continuously impacting piston vibrator.
BV-SI-image
BV-SI Series

  • Knocker Piston Vibrators - these vibrators produce powerful impacts at low operating pressure; impact force can be set pneumatically and/or by mechanical means. Compressed air pushes the piston against internal spring and holds the spring in the compressed position until the supply air is suddenly released. The potential energy in the spring is then unleached, and the spring slams the piston against the strike plate.
  • The "VKL-si" series impacts once every time the air supply is opened and released by an external valve. The "VKL-mi" series continues impacting as long as there is supply air. The interval between impacts is adjustable by means of a butterfly valve.

Pricing available upon request

VKL_SI
VKL-SI Series
VKL_MI
VKL-MI Series

  • Precision Linear Piston Vibrators - similar to non-impacting piston vibrator except tolerance between piston and cylinder is reduced to further minimize air consumption; lubricated and clean air supply required because of close tolerances.
VFP
FP Series Piston Vibrators
PVM
PVM Series
VFPL-single
FPLF Series Piston Vibrators
VLB_Image
VLB Series

  • Extended Piston Vibrators - one end of piston extends through cylinder; exposed piston end is tapped to allow multiple weights to be attached thereby changing amplitude output; amplitude can be controlled independent of frequency.

    FAL Models - Aluminum - Lubrication Free
VTL
VTL Series Piston Vibrators
FAL
FAL Series Piston Vibrators

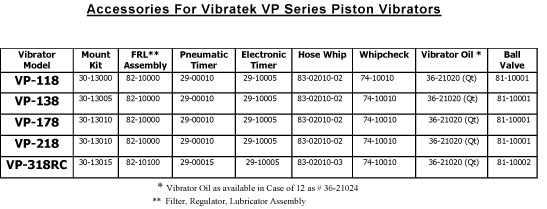

VP Vibratek Series AccessoriesVP_Accessories_Spreadsheet3

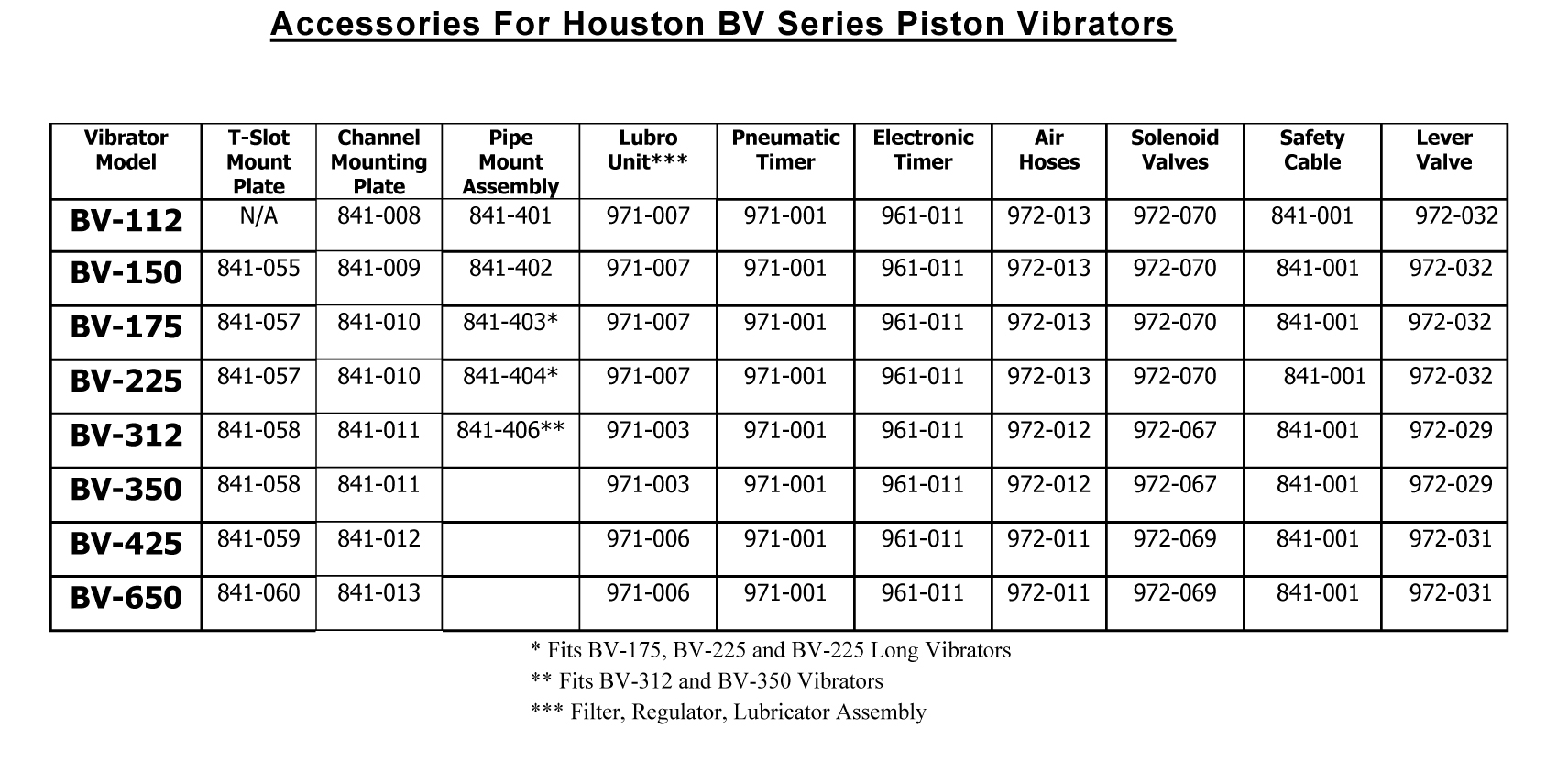

BV Houston Series AccessoriesBV_Accessories
