              Roller

              Characteristics: Simple, powerful, moderate life, and easily adjusted.  Noise is moderate with medium and heavy-duty models.  Loud noise with the extra heavy-duty models.

              Energy Source:  Air Powered/Pneumatic.

              Force Output:  Radial.

              Force Output Range:  38 to 14,000 lbs.

              Usage Recommendation: Intermittent operation (2 to 4 hours/day) when considering energy usage and life.

              Description: Pneumatic radial roller vibrator is designed with one rotating roller in most models. Force outputs are generated at higher frequencies than a comparable ball vibrator. Driven by compressed air, a ring-shaped roller rotates inside the vibrator housing. The center line of the roller is slightly offset from the center line of the vibrator housing. This produces a centrifugal force as the roller spins which causes the radial vibration. On larger sizes, there are two rollers. There are no bearings. The force output is easily adjusted by varying the supply air line pressure.

              Product Applications:  Wide range of applications in both compaction and bulk material flow.


              Use our FLOPRO© VIBRATOR SELECTOR for instant online recomendations based on your hopper dimensions and product type.

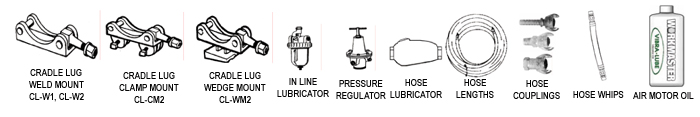

              * Click on the model number below to view accessories specific to that model *

              Category Sort Order
              Model Price
              Part #: 32-17326
              Manufacturer: Vibratek
              $560.00 Quantity:
              Part #: 32-17325
              Manufacturer: Vibratek
              $593.00 Quantity:
              Part #: 32-17324
              Manufacturer: Vibratek
              $78.00 Quantity:
              Part #: 32-17323
              Manufacturer: Vibratek
              $76.00 Quantity:
              Model: DAR-2
              Part #: DAR-2
              Max Force: 920
              Manufacturer: Findeva
              $240.00 Quantity:
              Model: DAR-3
              Part #: DAR-3
              Max Force: 1360
              Manufacturer: Findeva
              $320.00 Quantity:
              Model: DAR-4
              Part #: DAR-4
              Max Force: 1500
              Manufacturer: Findeva
              $420.00 Quantity:
              Model: DAR-5
              Part #: DAR-5
              Max Force: 1620
              Manufacturer: Findeva
              $600.00 Quantity:
              Part #: 74-10010
              Manufacturer: Vibratek
              $19.00 Quantity:
              Part #: 74-10011
              Manufacturer: Vibratek
              $28.00 Quantity:
              Part #: 74-10030
              Manufacturer: Vibratek
              $28.00 Quantity:
              Part #: 74-10040
              Manufacturer: Vibratek
              $61.00 Quantity:
              Part #: 83-09012-00
              Manufacturer: Vibratek
              $29.00 Quantity:
              Part #: 83-30013-09
              Manufacturer: Vibratek
              $59.00 Quantity:
              Part #: 30-13100
              Manufacturer: Vibratek
              $136.00 Quantity:
              Part #: 30-13105
              Manufacturer: Vibratek
              $188.00 Quantity:
              Part #: 30-13110
              Manufacturer: Vibratek
              $188.00 Quantity:
              Part #: QCR-5000
              Max Force: 6100
              Manufacturer:
              $460.00 Quantity:
              Model: R-50
              Part #: R-50
              Max Force: 950
              Manufacturer: Findeva
              $270.00 Quantity:
              Model: R-65
              Part #: R-65
              Max Force: 1300
              Manufacturer: Findeva
              $350.00 Quantity:
              Part #: 31-10000
              Manufacturer: Workmaster
              $92.00 Quantity:
              Part #: 31-10001
              Manufacturer: Workmaster
              $156.00 Quantity:
              Part #: 36-21024
              Manufacturer: Workmaster
              $220.00 Quantity:
              Part #: 36-21020
              Manufacturer: Workmaster
              $20.00 Quantity:
              Model: VRH-020
              Part #: 16-17314
              Max Force: 825
              Manufacturer: Vibratek
              $349.00 Quantity:

              35 product(s) found.

              Page 1 of 2

              <<  1  2  >>
